Horizontal and Vertical Mixer Horizontal_vertical_mixer

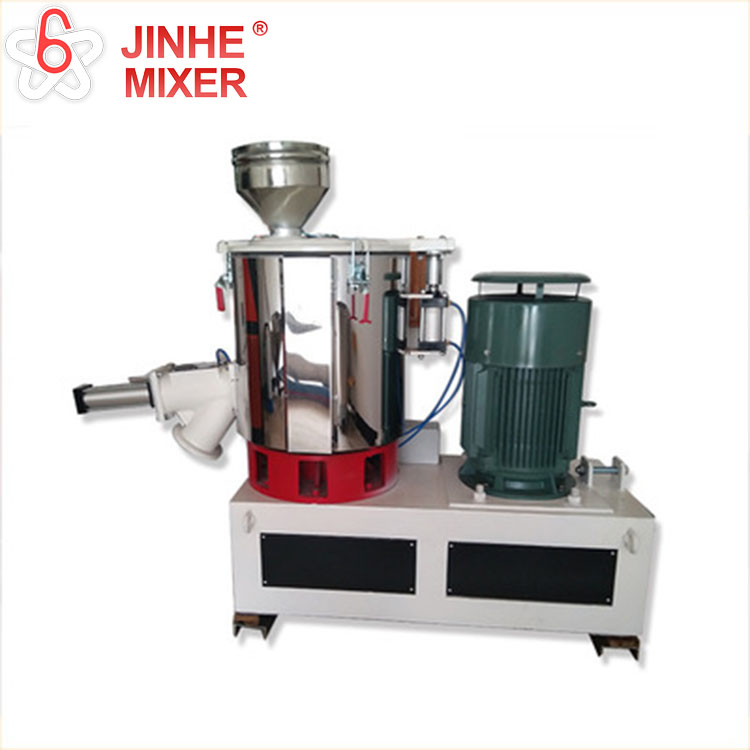

SHR High Speed Vertical Mixer Machine
The SHR series mixer is mainly used for mixing PVC, toner, biomass, and other materials, as well as various plastic batching, mixing, coloring, and drying processes...
- Introduction
- Principle
- Parameter
- Advantage
- Video
- Picture
The SHR series mixer is mainly used for mixing PVC, toner, biomass, and other materials, as well as various plastic batching, mixing, coloring, and drying processes. It is widely used in the production fields of plastics, rubber, food, chemicals, and pharmaceuticals.
The SHR series mixer features advanced technology, easy operation, safety and reliability, compact size, low energy consumption, high efficiency, and low noise, making it an ideal choice for customers.
Application & Features:
♦ It is used in mixing,stirring,colouring and other processing of all kinds of in plastic,rubber,daily chemical and other industries.
♦ The technology of sealing mainshaft has gained national patent.
♦ The technique of two layers of sealing is adopted in its pot covere it has self-friction heating and electric heating modes.
♦ The discharging mode adopt the temperature-automatic control and the control.
♦ The blades are made of stainless steel.
♦ They passed the test of dynamic balance and static equilibrium.
♦ Its electric control section adopts famous control components and temperature-control meter.
♦ It is used in mixing,stirring,colouring and other processing of all kinds of in plastic,rubber,daily chemical and other industries.
♦ The technology of sealing mainshaft has gained national patent.
♦ The technique of two layers of sealing is adopted in its pot covere it has self-friction heating and electric heating modes.
♦ The discharging mode adopt the temperature-automatic control and the control.
♦ The blades are made of stainless steel.
♦ They passed the test of dynamic balance and static equilibrium.
♦ Its electric control section adopts famous control components and temperature-control meter.
| Model | Capacity(L) | Effective Capacity(L) | Motor(kW) | Main Shaft Speed (rpm) | Heating Method | Discharge Method | Output(kg/h) |
| SHR-5A | 5 | 3.5 | 1.1 | 2850 | Self-friction | Hand | 45514 |
| SHR-10A | 10 | 7 | 3 | 2850 | 16-20 | ||
| SHR-25A | 25 | 17.5 | 5.5 | 1450 | Electric Self-friction |
Pneumatic | 45-54 |
| SHR-50A | 50 | 35 | 11 | 1450 | 85-90 | ||
| SHR-100A | 100 | 70 | 22 | 1300 | 175 | ||
| SHR-200A | 200 | 140 | 37 | 950 | 350 | ||
| SHR-300A | 300 | 210 | 55 | 950 | 525 | ||
| SHR-500A | 500 | 350 | 75 | 950 | 875 | ||
| SHR-800A | 800 | 560 | 110 | 860 | 1400 | ||
| SHR-1000A | 1000 | 700 | 132 | 860 | 1800 | ||
| SHR-1300A | 1300 | 910 | 160 | 800 | 2300 | ||
| SHR-1500A | 1500 | 1050 | 185 | 800 | 2900 | ||
| SHR-2000A | 2000 | 1400 | 250 | 800 | 3500 |
