It is suitable for dispersing and mixing materials in high viscosity slurry, like Engineering Adhesives, New Energy, Electric Slurry Paste, Chemical Paste.

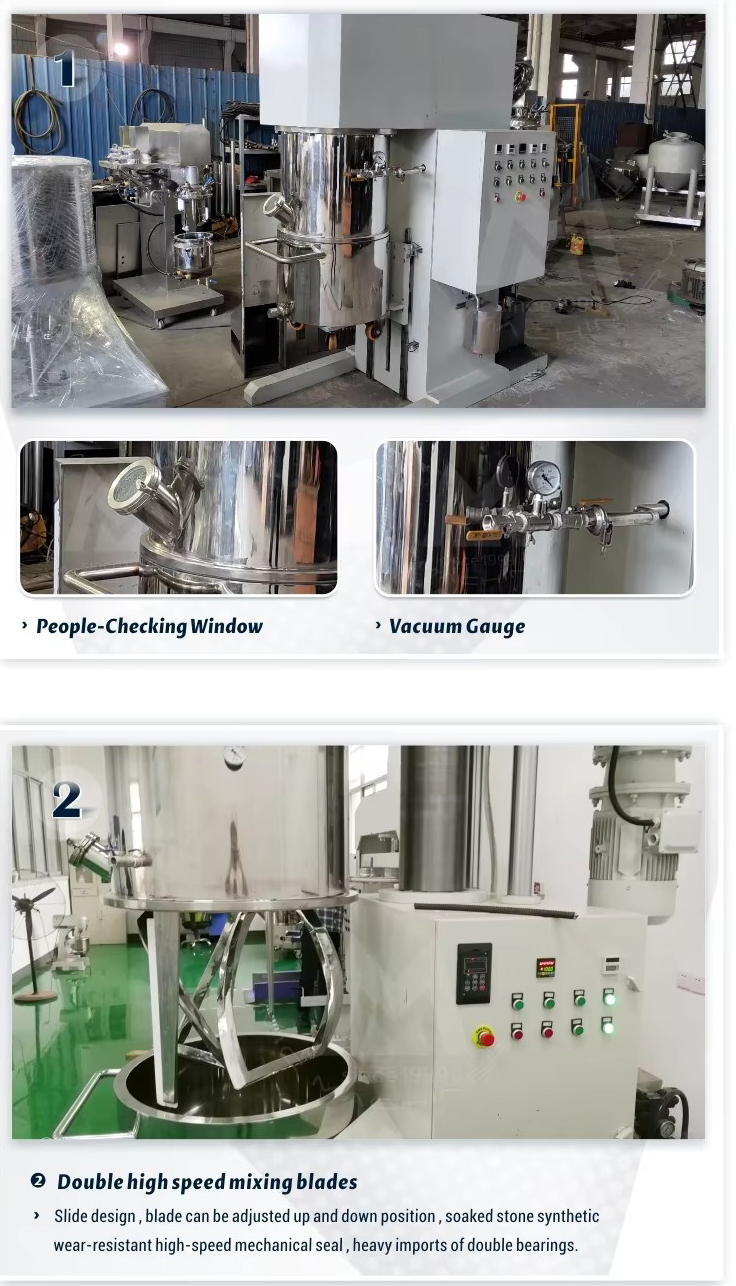

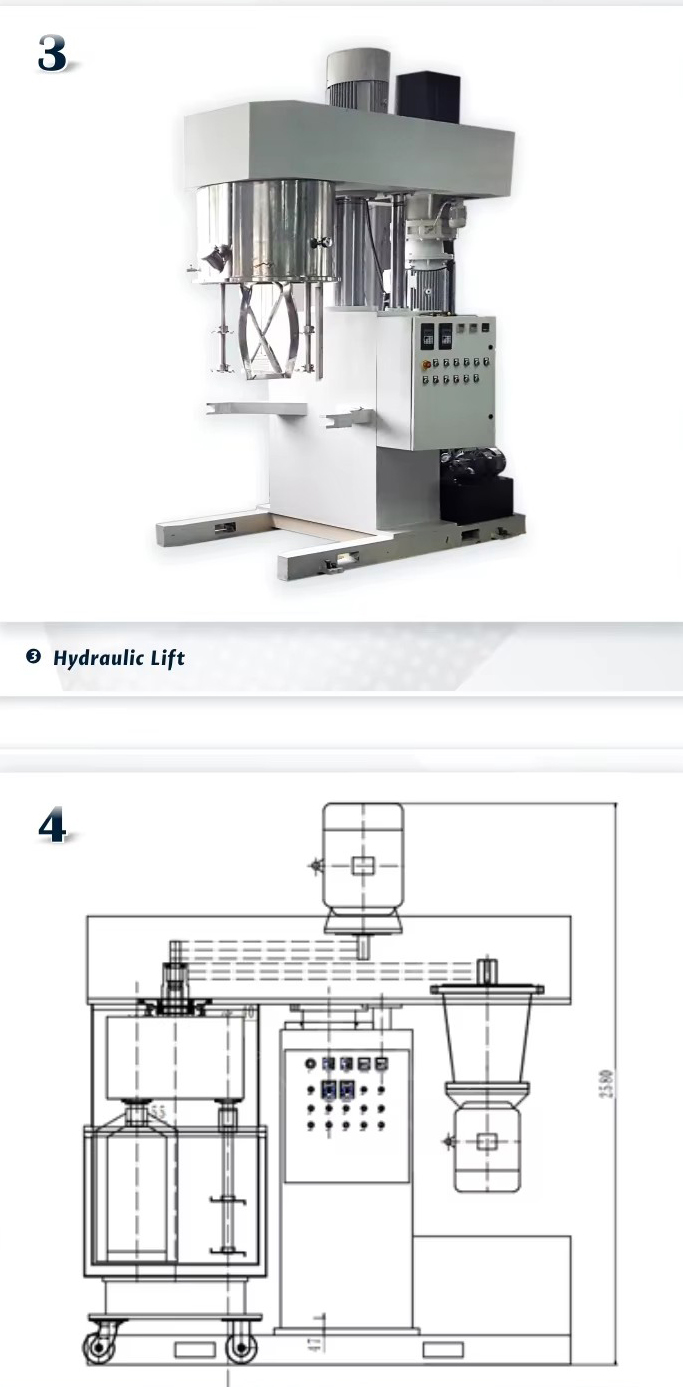

The main frame is composed of three parts: the base, the vertical columns, and the cross beams, which are welded together. Each part is processed independently. All connecting surfaces are mechanically processed to ensure the accuracy of each working surface of the frame.
\
Material viscosity
≤ 1,000,000 cps
Production capacity
2-3000L (working volume)
Application industry
It is suitable for dispersing and mixing materials in high viscosity slurry, like Engineering Adhesives, New Energy, Electric Slurry Paste, Chemical Paste.
Applicable materials
All kinds of paste with viscosity less than 1,000,000 cps, solid content under 90%, such as lithium battery paste, solder paste, ceramic paste, silicone ink, sealant, structural adhesive, ointment, Composite filling material, Phase Change Material, Dental Paste, etc.
Feature
Various types of blades can be selected according to the viscosity and characteristics of the material; It is equipped with pressing equipment for discharging and can be equipped with vacuum systems and heating systems.
\
Model Tank working size(L) Tank Design Size(L) Revolution Motor(KW) Mix Speed(rpm) Disperse Motom(KW) Disperse Speed(rpm)
JHG-2L 2L 3L 0.75 0-112 0.75 0-7500
JHG-5L 5L 7.4L 1.5 0-104 1.5 0-6800
JHG-10L 10L 14L 2.2 0-100 2.2 0-5200
JHG-20L 20L 29L 2.2 0-84 2.2 0-4600
JHG-30L 30L 44L 3 0-84 5.5 0-5500
JHG-60L 60L 88L 7.5 0-53 11 0-4500
JHG-100L 100L 149L 11 0-46 15.5 0-3700
JHG-200L 200L 287L 22 0-39 30 0-2800
JHG-300L 300L 368L 22 0-39 37 0-2200
JHG-500L 500L 670L 37 0-35 45 0-2000
JHG-650L 650L 807L 45 0-35 55 0-2000
JHG-1000L 1000L 1327L 55 0-36 75 0-1800
JHG-1500L 1500L 1846L 75 0-35 90 0-1500
JHG-2000L 2000L 2300L 90 0-35 110 0-1500
JHG-3000L 3000L 3400L 110 0-24 132 0-1000
