Working Principle

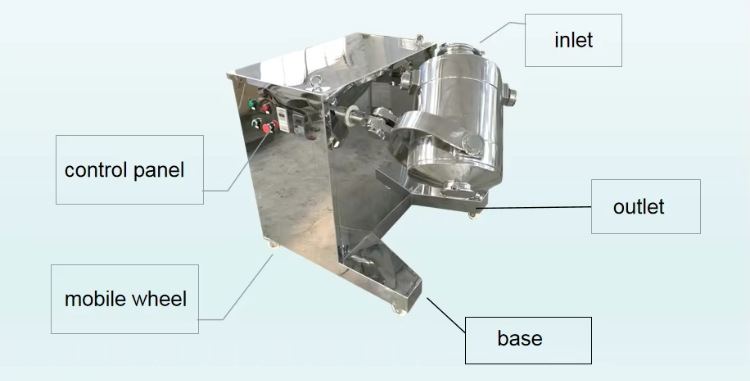

The machine is composed of base, speed-regulating motor, shaft, rotary link and barrel. The loaded barrel is driven by the driving shaft to perform flat movements and rock and other compound movements to promote the three-dimensional compound motion of the material along the barrel in the hoop direction, radial direction and axial direction, thereby realizing the mutual flow diffusion of various materials. In order to achieve a high degree of uniformity of mixing purposes, the machine is a sterile, dust-free, fully enclosed high-efficiency energy-saving mixer.
Features of the mixer machine1.Short mixing time and high efficiency.
2.The inner wall of the barrel is finely polished, with no dead angle, no contaminated material, convenient discharge, easy cleaning and easy operation.
3.Due to the multi-direction movement of the mixing barrel, the cross-mixing points of the materials in the barrel are large, the mixing effect is high, the uniformity can reach over 99.9%, and the maximum loading coefficient can reach 0.9 (0.4 to 0.6 for ordinary mixers).
Application of 3D Mixer
The machine is used for mixing the powder state and grain state materials with the high uniformity in the chemical, food, light-industry, electronic, metallurgical, nation defense industries and other science and technology institutes.
| Model | Gross volume | Max.loading volume | Max.loading weight | Rotary speed | Power | Dimension (L*W*H) | weight |
| JHTD-5 | 5 | 4 | 2.4 | 0~12 | 0.25 | 600*1000*700 | 150 |
| JHTD-15 | 15 | 12 | 7.5 | 0~12 | 0.37 | 700*1000*700 | 200 |
| JHTD-50 | 50 | 40 | 25 | 0~12 | 1.1 | 1000*1400*1100 | 300 |
| JHTD-100 | 100 | 80 | 50 | 0~12 | 1.5 | 1200*1700*1200 | 500 |
| JHTD-200 | 200 | 160 | 100 | 0~12 | 2.2 | 1400*1800*1500 | 800 |
| JHTD-300 | 300 | 240 | 150 | 0~12 | 3 | 1800*1950*1700 | 1000 |
| JHTD-400 | 400 | 320 | 200 | 0~12 | 4 | 1800*2100*1800 | 1200 |
| JHTD-500 | 500 | 400 | 250 | 0~12 | 5.5 | 1900*2000*1950 | 1380 |
| JHTD-600 | 600 | 480 | 300 | 0~12 | 5.5 | 1900*2100*2100 | 1500 |
| JHTD-800 | 800 | 640 | 400 | 0~12 | 7.5 | 2200*2400*2250 | 2000 |
| JHTD-1000 | 1000 | 800 | 500 | 0~12 | 7.5 | 2250*2600*2400 | 2500 |
| JHTD-1500 | 1500 | 1100 | 750 | 0~12 | 11 | 2500*2800*2800 | 3000 |
