It is widely used in chemical, pesticides, dyes, food, feed, feed additives, petroleum, metallurgy, mining and other industries in the powder and powder liquid mixing.
Main Features:
Main Features:
1. Fast mixing of dry powder or small granules with good flowability in food and chemical industry
2. Mixing chamber volume: 50-2000L
3. Food-grade design
4. Agitator can be equipped to strengthen the mixing effect

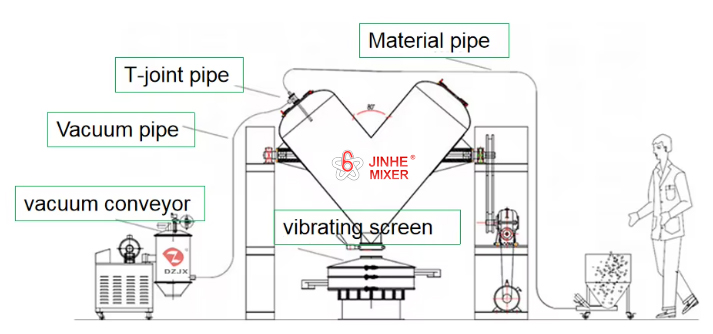

5. Can work with vacuum conveyor to achieve automatic feeding and prevent dust

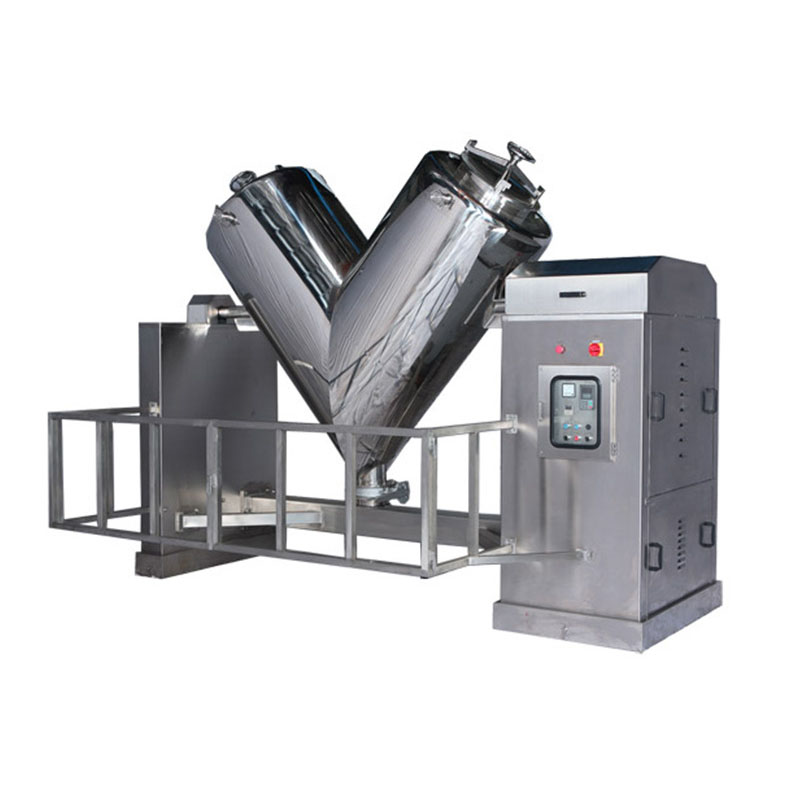

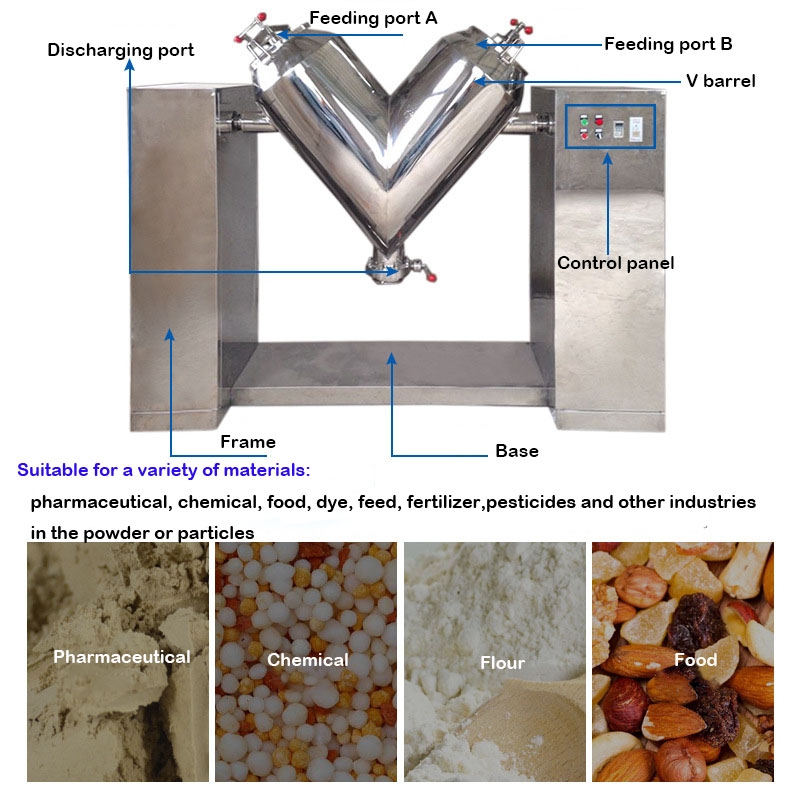

JHV series V shape mixer blender consists of two V-shells of different or same altitudes,and through mechanical transmission,the meterials in these shells are made to move back and forth, crossed over and rotate 360 degree to achieving ultimate uniform mixing.
| Type | Total volume | Effective volume | Rotary speed | Power | Weight |
| JHV-50 | 50 | 20 | 25 | 0.4 | 260 |
| JHV-100 | 100 | 45 | 22 | 0.55 | 350 |
| JHV-300 | 300 | 154 | 20 | 0.75 | 600 |
| JHV-500 | 500 | 210 | 18 | 1.5 | 700 |
| JHV-1000 | 1000 | 425 | 15 | 3 | 1800 |
| JHV-1500 | 1500 | 700 | 15 | 4 | 2300 |
| JHV-2000 | 2000 | 800 | 14 | 5.5 | 3400 |
| JHV-3000 | 3000 | 1250 | 14 | 5.5 | 4250 |
| JHV-4000 | 4000 | 1850 | 14 | 7.5 | 5500 |
| JHV-5000 | 5000 | 2300 | 14 | 7.5 | 6000 |
