Introduction

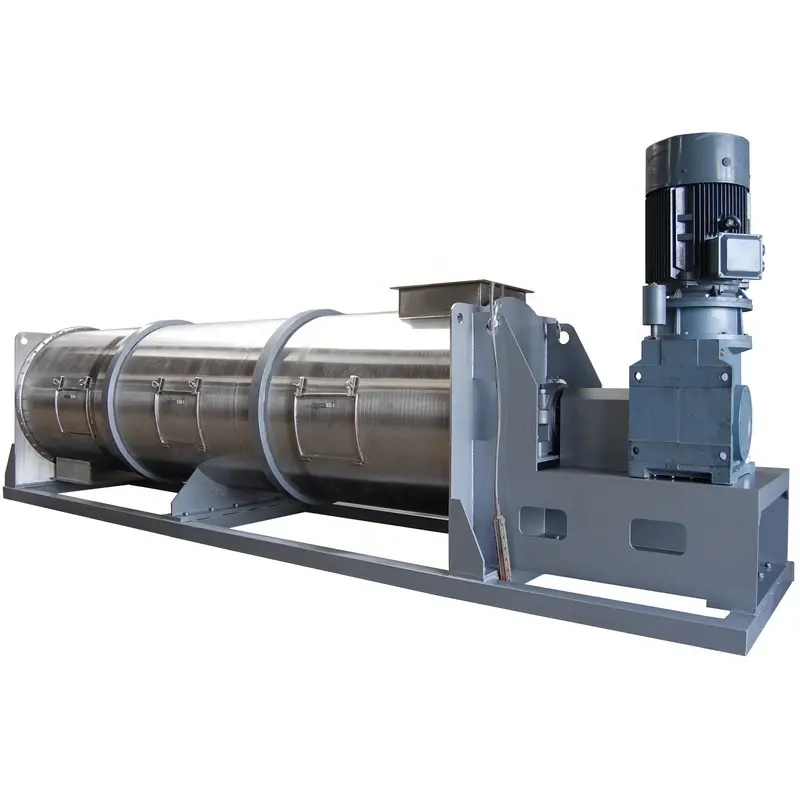

JHCM-series continuous mixer can achieve feeding and discharging simultaneously. It is normally matched in the large scale production line, on the basis of mixing material evenly, it can ensure the consistency and stability of all the product. The CMS (Continuous single shaft plough mixer), focus on mixing, it can also be used as conveyor. With the special inner structure, it can adapt to a certain range of the feeding speed to achieve relevant productivity. With the uniform speed feeding equipment, it can mix material in a wide range, and make sure the consistency and stability of all the product.
Working Principle
Horizontal barrel body with rotating reverse the blade, the pulp into a certain angle of the material along the axial, radial cycle stir, so that the material quickly mixed. It shortens the mixing period with more efficient. Even if the material has a specific gravity and difference particle size, it will also achieve a good mixing effect in the staggered arrangement of the mixing blade fast and by the violent throwing thrown. CM ( continuous double shaft paddle mixer) is characterized by maximizing the productivity. Materials are scattered during the vigorous mixing process, diffused and nobbed between the meshing space of the twin shafts. It can be applied to mix fiber and granules.
\
\
\
\

TYPE TOTAL VOLUME
（L）		 MIN CAPACITY
(L)		 MAX CAPACITY
(L)		 MIN OUTPUT
Ton/h		 MAX OUTPUT
Ton/h		 POWER
(KW)		 L(mm) H(mm) C(mm) WEIGHT
(KG)
JHCM-500 500 100 250 2 6 7.5 3200 1200 1100 800
JHCM-1000 1000 200 500 5 15 11 3800 1350 1200 1200
JHCM-2500 2500 500 1250 10 30 22 4600 1680 1600 1600
JHCM-4000 4000 800 2000 20 60 37 5000 1860 1800 2600
JHCM-6000 6000 1200 3000 30 100 45 6000 2150 2350 3500
JHCM-10000 10000 2000 5000 50 150 75 6600 2400 2600 5500
JHCM-15000 15000 3000 7500 80 200 110 7000 2650 2900 8000
