- 1. High Uniformity
- 2. Short mixing time,High Efficiency
- 3. 80% loading rate
- 4. Time saving,Energy saving,Space saving,Money saving.
- 5 Small damage to the original appearance of powders.
- 6. Solve the problem of ultra-fine powder mixing.
- 7. Solve the problem of light-heavy powder mixing.
- 8. Effectively solve the problem of uniform mixing diffuculty of trace elements
- 1. The important factor influenci
- 2. Particle size - an important
- 3. Powder fluidity is a double-edged sword
- 4. Pretreatment of powder mixture
- 5. Powder mixing principle introduce
- 6. Traditional powder mixers' adv
- 7. Selection of blending equipment
- 8. The basis of the uniform blending of powder
- 9. How to find the cause of mixing bad uniformity
- 10. Super light powder mixing precautions
- 11. Super fine powder mixing precautions
- 12. How to mix bad liquidity powder?
- 13. How to mix trace elements
- 14. A solution for powder's good
- 15. How does the dummy particles

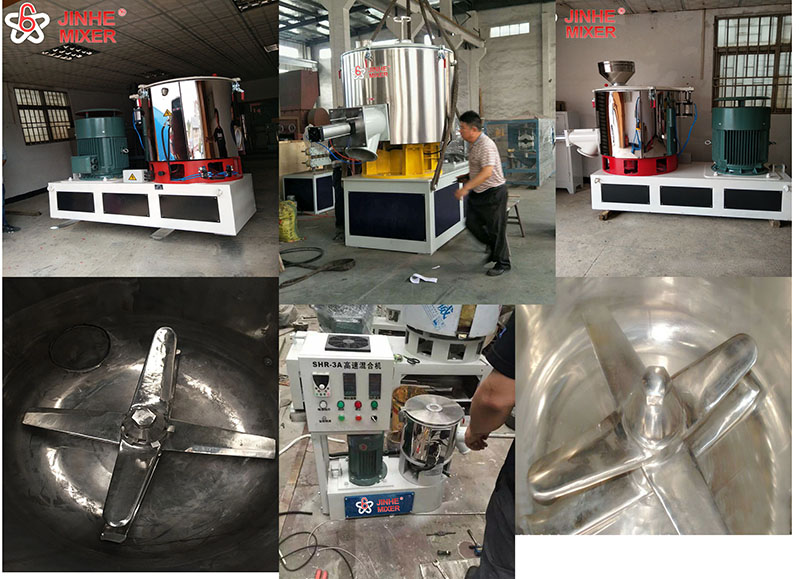

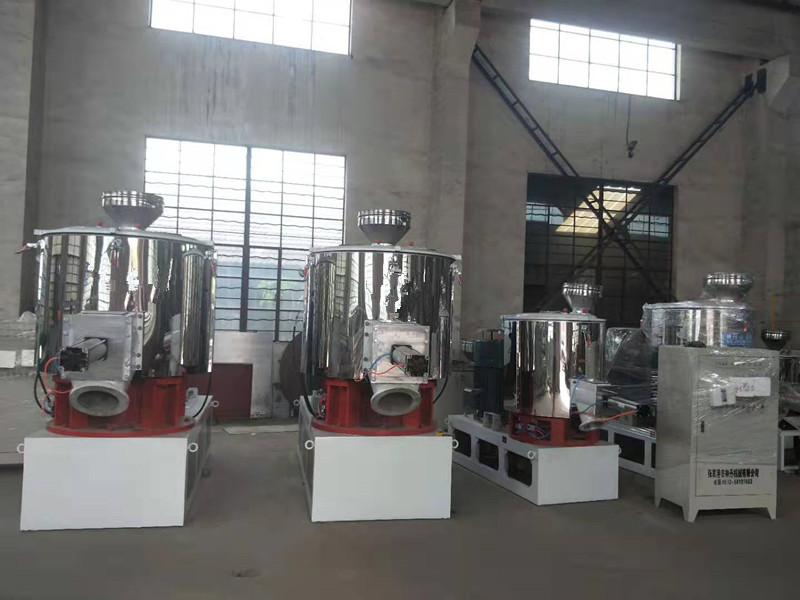

The SHR series mixer is mainly used for mixing PVC, toner, biomass, and other materials, as well as various plastic batching, mixing, coloring, and drying processes. It is widely used in the production fields of plastics, rubber, food, chemicals, and pharmaceuticals.
The SHR series mixer features advanced technology, easy operation, safety and reliability, compact size, low energy consumption, high efficiency, and low noise, making it an ideal choice for customers.
Application & Features:
♦ It is used in mixing,stirring,colouring and other processing of all kinds of in plastic,rubber,daily chemical and other industries.
♦ The technology of sealing mainshaft has gained national patent.
♦ The technique of two layers of sealing is adopted in its pot covere it has self-friction heating and electric heating modes.
♦ The discharging mode adopt the temperature-automatic control and the control.
♦ The blades are made of stainless steel.
♦ They passed the test of dynamic balance and static equilibrium.
♦ Its electric control section adopts famous control components and temperature-control meter.
♦ It is used in mixing,stirring,colouring and other processing of all kinds of in plastic,rubber,daily chemical and other industries.
♦ The technology of sealing mainshaft has gained national patent.
♦ The technique of two layers of sealing is adopted in its pot covere it has self-friction heating and electric heating modes.
♦ The discharging mode adopt the temperature-automatic control and the control.
♦ The blades are made of stainless steel.
♦ They passed the test of dynamic balance and static equilibrium.
♦ Its electric control section adopts famous control components and temperature-control meter.
| Model | Capacity(L) | Effective Capacity(L) | Motor(kW) | Main Shaft Speed (rpm) | Heating Method | Discharge Method | Output(kg/h) |
| SHR-5A | 5 | 3.5 | 1.1 | 2850 | Self-friction | Hand | 45514 |
| SHR-10A | 10 | 7 | 3 | 2850 | 16-20 | ||
| SHR-25A | 25 | 17.5 | 5.5 | 1450 | Electric Self-friction |
Pneumatic | 45-54 |
| SHR-50A | 50 | 35 | 11 | 1450 | 85-90 | ||
| SHR-100A | 100 | 70 | 22 | 1300 | 175 | ||
| SHR-200A | 200 | 140 | 37 | 950 | 350 | ||
| SHR-300A | 300 | 210 | 55 | 950 | 525 | ||
| SHR-500A | 500 | 350 | 75 | 950 | 875 | ||
| SHR-800A | 800 | 560 | 110 | 860 | 1400 | ||
| SHR-1000A | 1000 | 700 | 132 | 860 | 1800 | ||
| SHR-1300A | 1300 | 910 | 160 | 800 | 2300 | ||
| SHR-1500A | 1500 | 1050 | 185 | 800 | 2900 | ||
| SHR-2000A | 2000 | 1400 | 250 | 800 | 3500 |
