Working principle

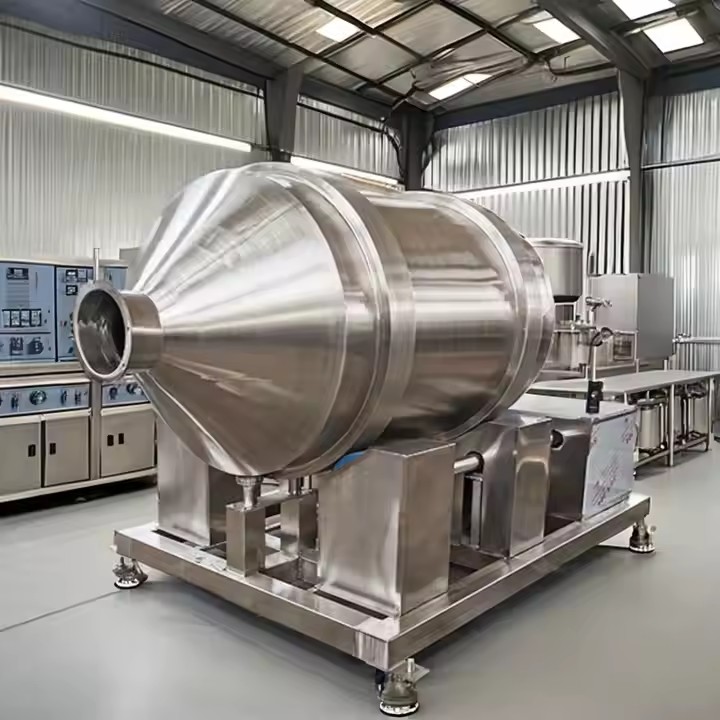

Two dimensional mixer is mainly composed of rotary drum, swing frame, frame three major parts. The rotating drum is arranged on the swing frame, supported by four rollers and axially positioned by two retaining wheels. Among the four supporting rollers, two driving wheels are dragged by the rotating power system to make the rotating drum rotate, the swing frame is driven by a set of crank-swing-bar mechanisms on the frame, and the swing frame is supported on the frame by a bearing component.
Performance characteristics
Two dimensional mixer rotating drum can be carried out at the same time two movements, one for the rotation of the drum, the other for the drum swing with the swing frame. When the mixed material rotates, flips and mixes with the rotating drum, it also mixes with the swinging of the rotating drum, the material is fully mixed in a short time. Eyh two-dimensional mixer for all powder, granular material mixing.
\
\
\
Technical Specification
Type
Barrel volume
(L)
Loading capacity
(L)
Max loading weight
(kg/time)
No.of swing&rotation
(r/min)
Motor power
(kw)
Overall dimensions
X×Y×Z
(mm)
Weight
(kg)
JHEW-150
150
90
45
37
1.15
800×1050×1450
190
JHEW-300
300
180
90
30
1.15
900×1350×1550
340
JHEW-600
600
360
180
23.6
3
1170×1640×2050
1150
JHEW-800
800
480
240
19.8
3
1320×1950×2150
1600
JHEW-1000
1000
600
300
19.8
3
1300×2980×1894
1700
JHEW-3000
3000
1800
900
13.8
11
1860×3860×2570
3500
JHEW-6000
6000
3600
1800
11.2
18.5
2280×4965×3172
6100
JHEW-10000
10000
6000
3000
9
30
2600×5500×3750
9500
JHEW-15000
15000
9000
4500
6
50
3100×5600×4700
11000
JHEW-20000
20000
12000
6000
6
60
3600×6100×5000
12000
\
