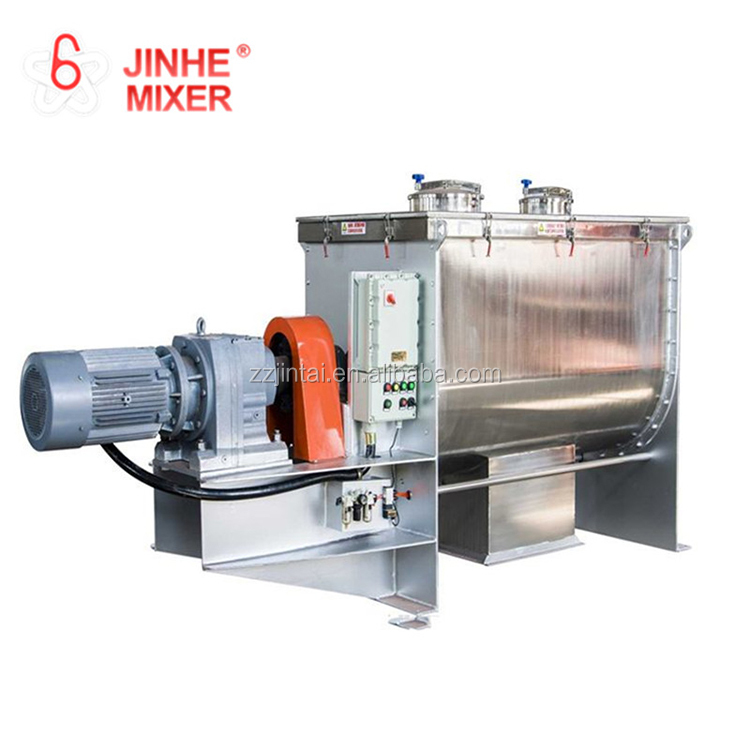

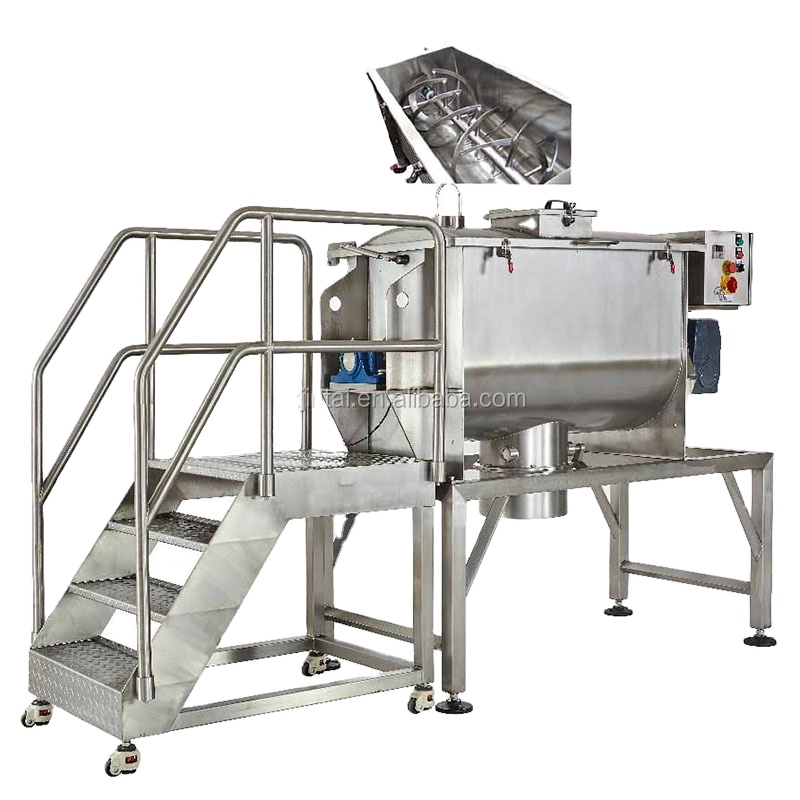

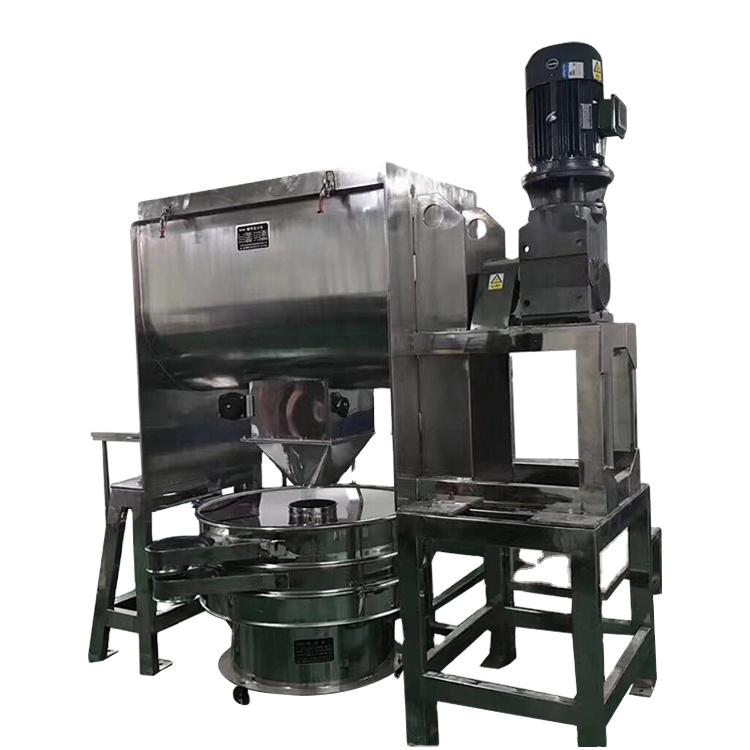

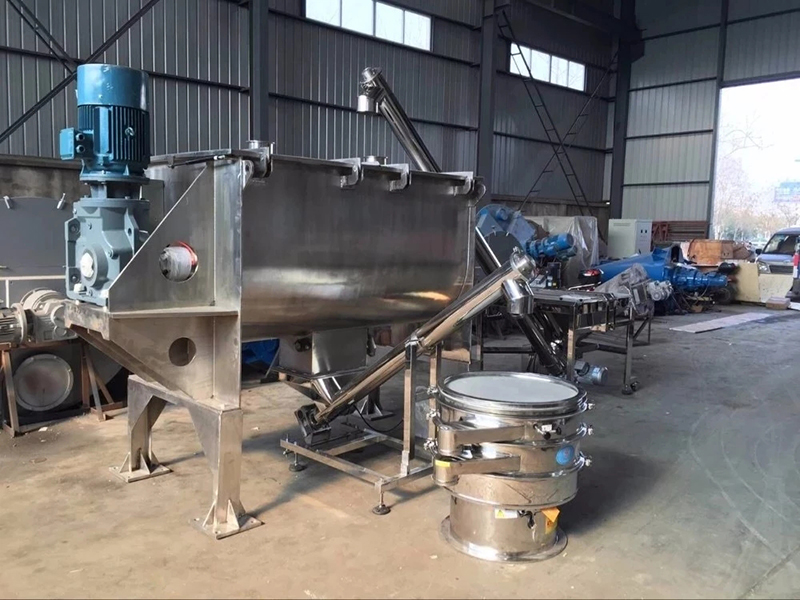

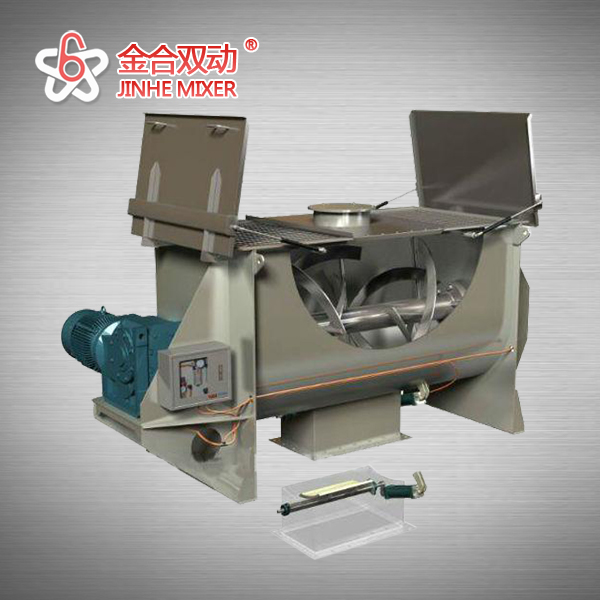

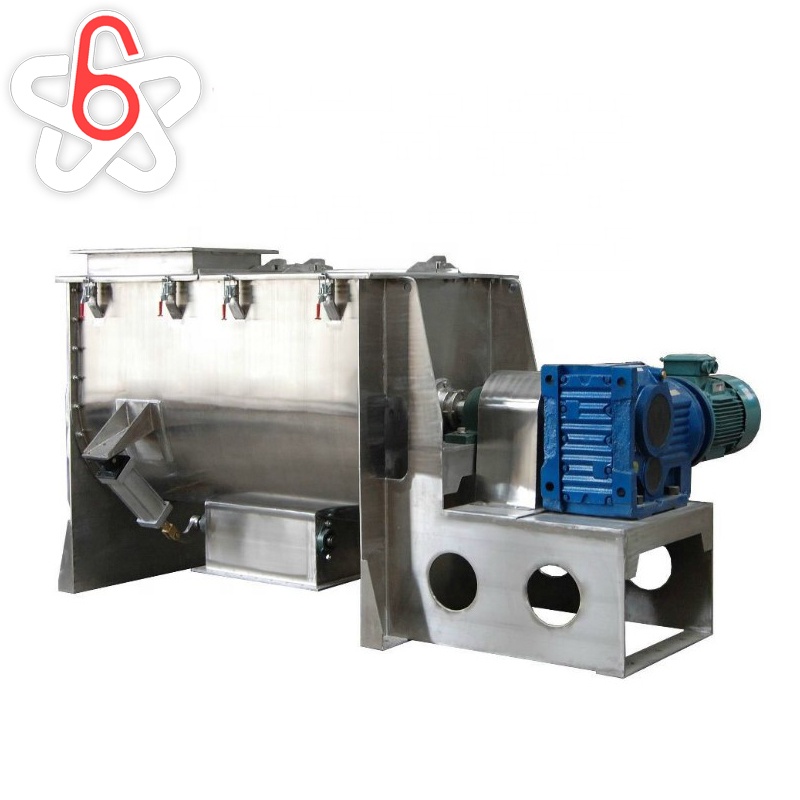

JHRB Ribbon Plow Horizontal Mixing machine Introduction:
JHRB Horizontal spiral belt mixing machine comprises of U-shape container, transmission parts and spiral belt agitating blades which usually have double or triple layers with outside screw gathering the material from sides to center and inside screw transmitting the material from center to sides to form convection mix. Spiral belt mixing machine has a good result in the mix of viscosity or cohesion powder and of putting liquid and mash material into the powder. The cylinder cover can be fully open so as to clean and change the device.

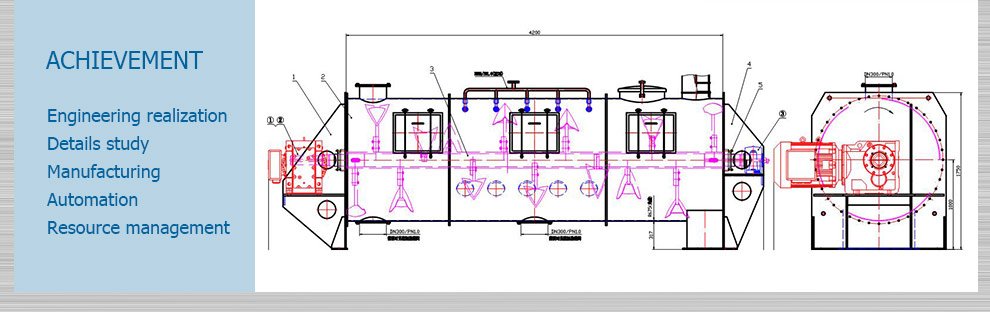

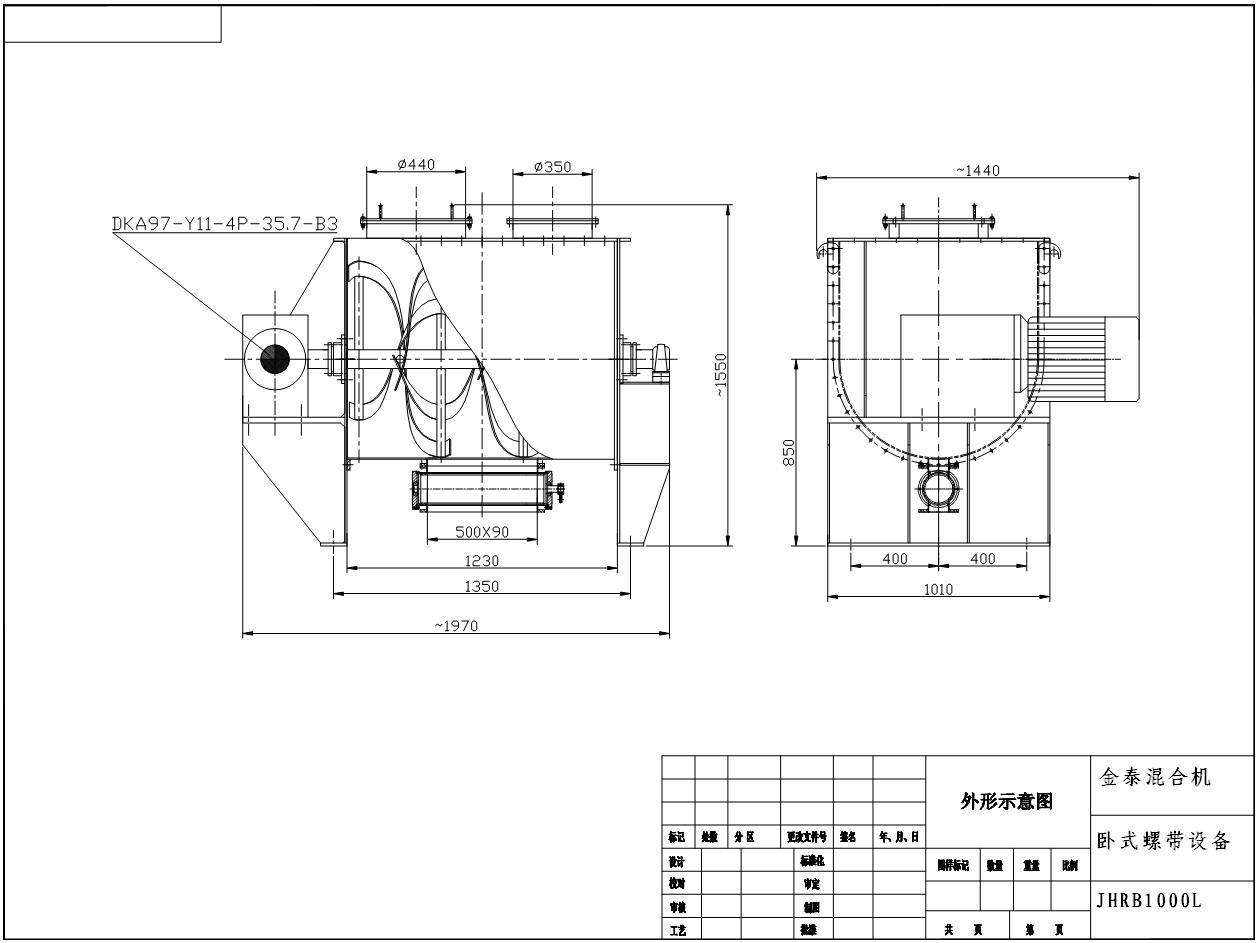

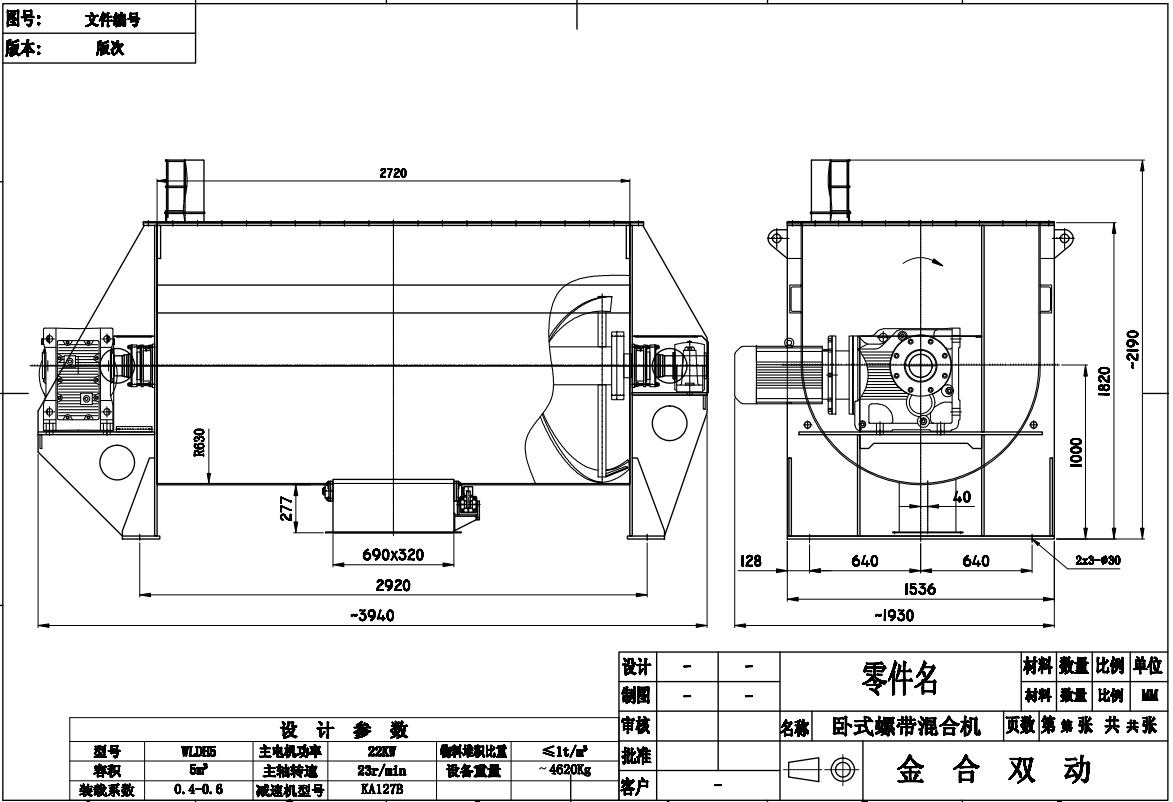

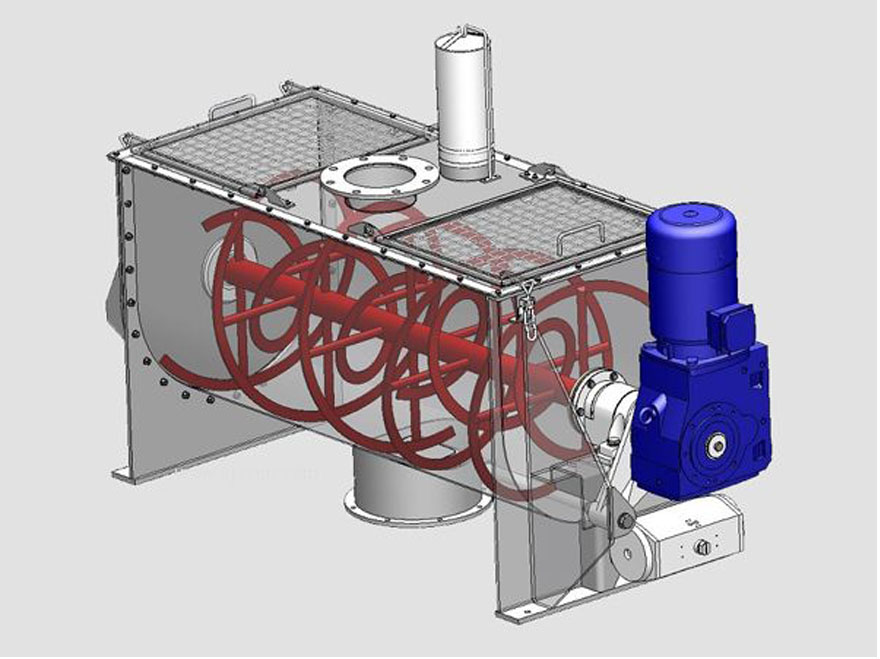

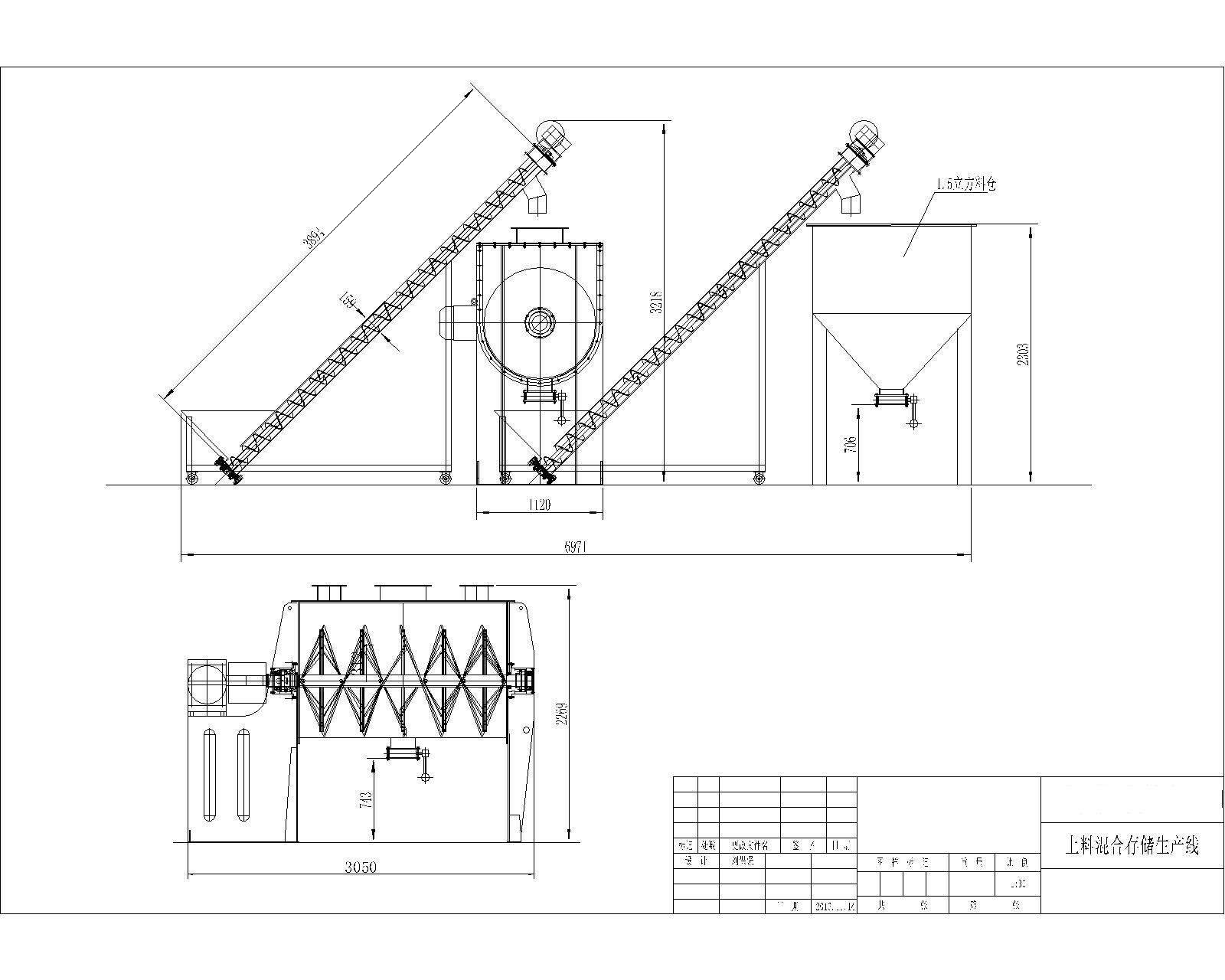

Some Drawing Pictures:
How does Ribbon Mixing Machine Work?

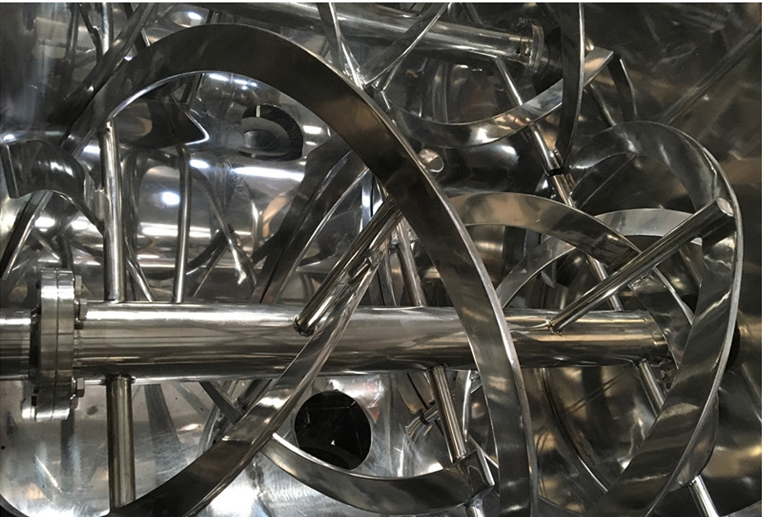

Ribbon mixer consist of a U-shaped horizontal trough and a specially fabricated ribbon agitator. A ribbon agitator consists of a set of inner and outer helical blades. The outer ribbon moves materials toward the center of the trough, and the inner ribbon moves the materials toward the outside of the trough. The ribbon also rotates at approx. 50rpm, thus moving materials both radially and laterally to insure thorough blends in short cycle times. Ribbon agitators are used for blends that will be between 40 and 70% of the rated capacity of the blender.
Technical Parameters :
|
Model Project
|
Total Volume (M³)
|
Loads coefficient
|
Electrical
machiney power (KW) |
Size(mm)× Max-diameter ×High
|
Equipment weight (kg)
|
|
JHRB-150
|
0.15
|
0.4-0.8
|
3
|
1190×740×770
|
330
|
|
JHRB-300
|
0.3
|
0.4-0.8
|
5.5
|
2030×630×980
|
720
|
|
JHRB-500
|
0.5
|
0.4-0.8
|
7.5
|
2320×730×1130
|
980
|
|
JHRB1000
|
1
|
0.4-0.8
|
11
|
2800×920×1320
|
1700
|
|
JHRB1500
|
1.5
|
0.4-0.8
|
15
|
3180×1020×1550
|
1800
|
|
JHRB2000
|
2
|
0.4-0.8
|
15
|
3310×1120×1640
|
2100
|
|
JHRB3000
|
3
|
0.4-0.8
|
18.5
|
3750×1290×1820
|
3000
|
|
JHRB4000
|
4
|
0.4-0.8
|
22
|
4220×1400×1990
|
3980
|
|
JHRB5000
|
5
|
0.4-0.8
|
30
|
4220×1500×2100
|
4620
|
|
JHRB6000
|
6
|
0.4-0.8
|
37
|
4700×1610×2260
|
6180
|
|
JHRB8000
|
8
|
0.4-0.8
|
45
|
4420×2150×2470
|
8200
|
|
JHRB10000
|
10
|
0.4-0.8
|
45
|
5520×2960×2720
|
8920
|
|
JHRB12000
|
12
|
0.4-0.8
|
45
|
5720×3010×2840
|
9520
|
|
JHRB15000
|
15
|
0.4-0.8
|
55
|
5840×3540×2940
|
9950
|
