JHC Screw Powder Feeding Conveyor Technical Parameters:

Model JHC-1 JHC-2 JHC-3 JHC-4 JHC-5
Diameter of pipe 89mm 114mm 141mm 168mm 219mm
Capacity/hour 1-1.5M3 2-3M3 3-5M3 5-8M3 8-10M3
Voltage 380V 50HZ 380V 50HZ 380V 50HZ 380V 50HZ 380V 50HZ
Power 0.75-1.0KW 1.1-1.5KW 1.5-2.2KW 2.2-3.0KW 3.5-4.0KW
The hight
 of input
850mm 900mm 900mm 900mm can be  customized 900mm can be  customized
The Hight
of output
1.6m 1.8m   1.8m 2.0m  can be  customized 2.0m  can be  customized
The volume
 of hooper
110L 230L 230L 260L 260L



\

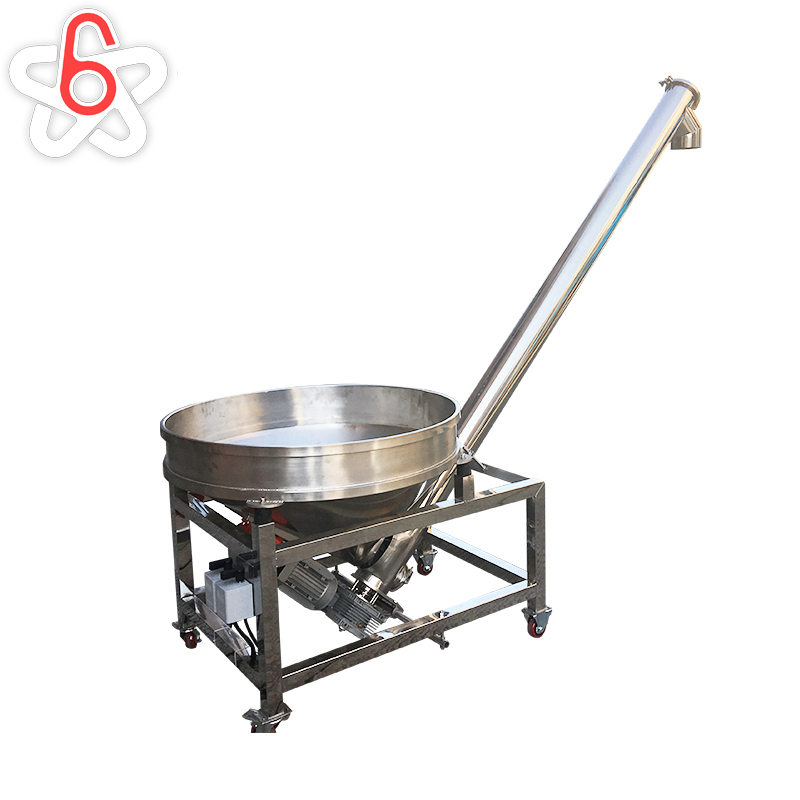

\Introduce of Factory price for screw feeder with hopper   :


    This machine is mainly used in conveying powder, particles of ascension, suitable for food, chemical, pharmaceutical and other industries, or with a fully automatic, semi-automatic of injected powder packaging machine, form linkage, reduce the intensity of production operation and ensure accuracy of packaging, as a corollary equipment of choice.
Compared with other transportation equipment, screw conveyor with the machine section size small, reliable sealing performance is good, smooth operation, screw and feeding tube adopts new structure of subsection and demountable facilitate transport clean and safe operation, convenient maintenance, etc.

   The vibrating screw feeder can improve a variety of powder materials;

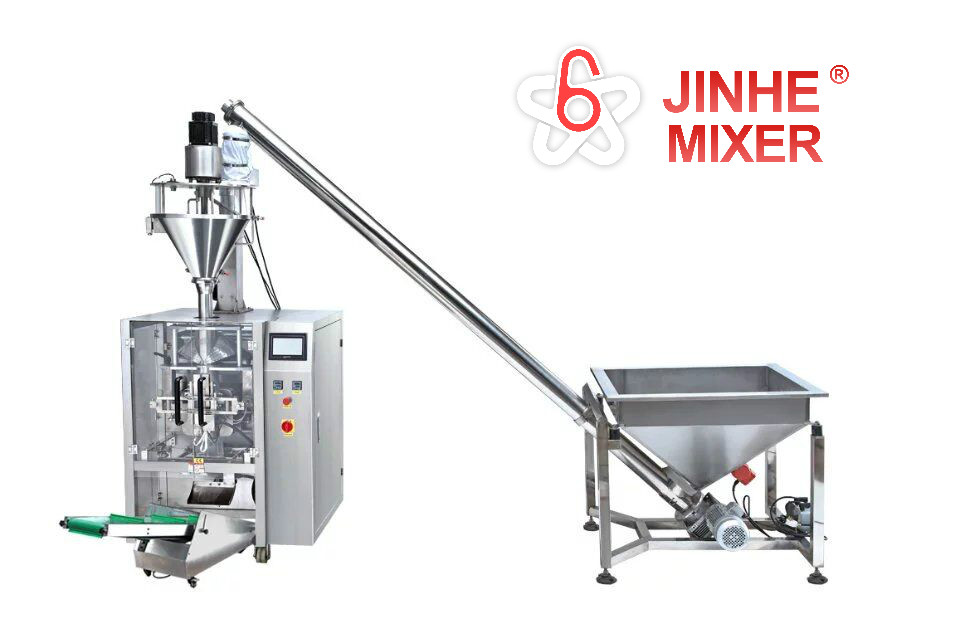

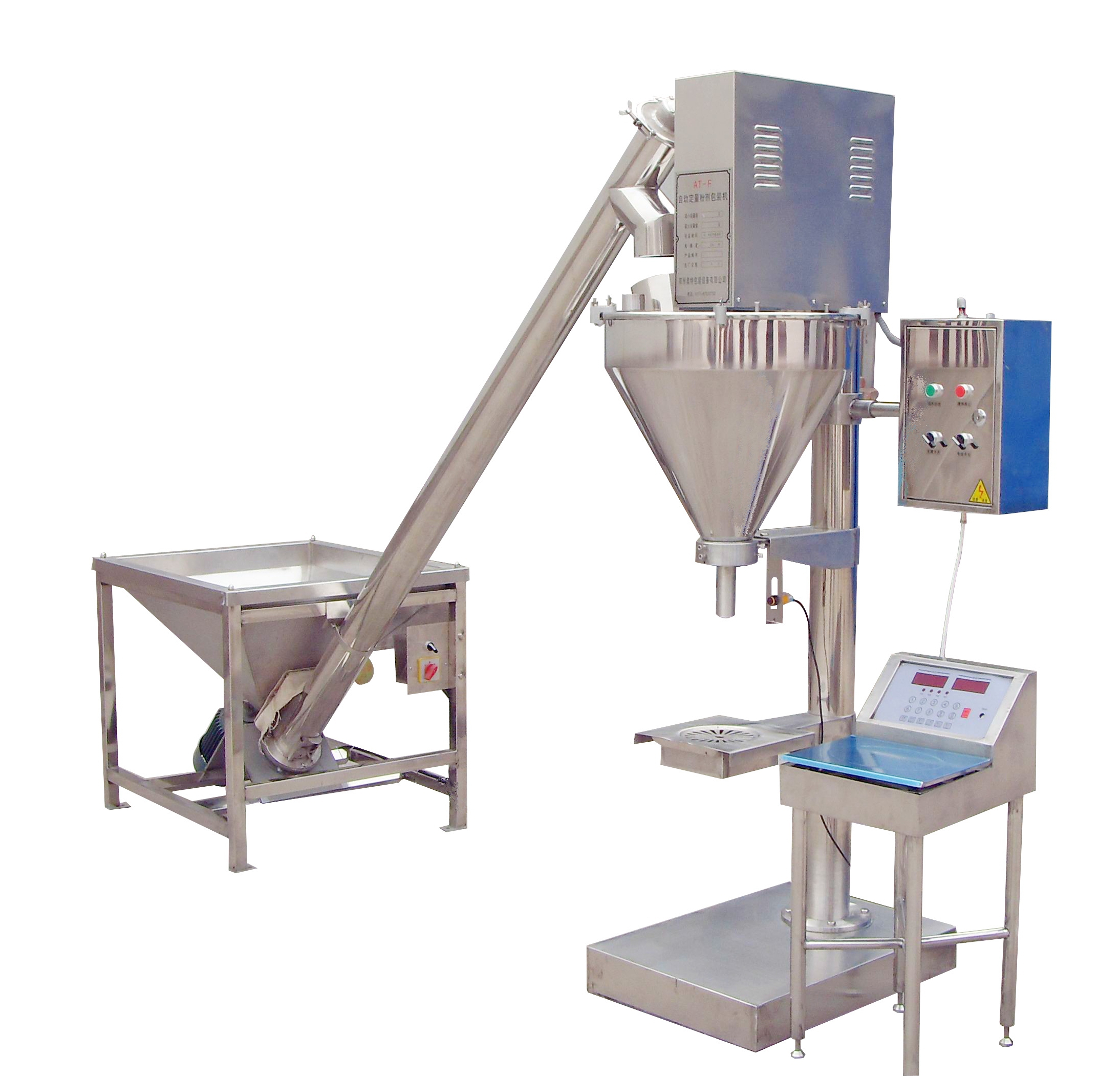

   to form a complete set of packaging machine;
   to realize automatic level tracking feed;
   And also can be used separately on other occasions in additionto the motor bearing frame the     rest of stainless steel (can also be customized accordingto requirements;
